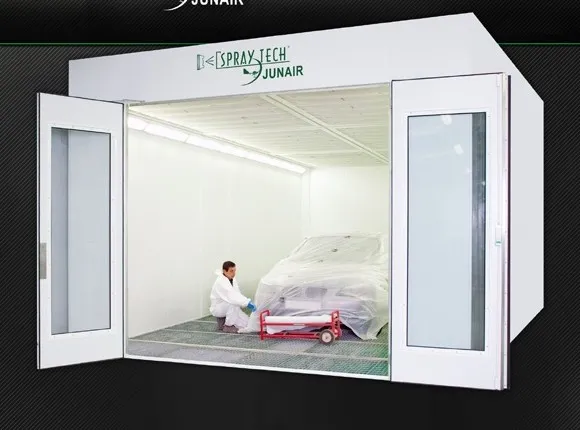

SprayTech & JunAir
Cross-draft
spray booths.
A clean, reliable design with the exhaust plenum at the front door, so dust and contaminants are removed immediately and never reach the vehicle.
- Authorized SprayTech & JunAir
- Engineers & Tradesmen
- Warranty & Workmanship Guarantee
- Serving all of Alberta
Overview
A clean paint job, every time
The cross-draft design creates a clean paint job. With the exhaust plenum by the front door, dust and contaminants are removed immediately and do not come in contact with the vehicle. Booth Right also offers an inlet damper conversion to keep cold air out when the heater is not in use, plus a drive-through door to substitute the back wall.
- Reverse flow with booth-mounted 1.0 MBTU heater, 80% recirculation
- 1.5 MBTU heater upgrade available
- Optional drive-through rear door
What you get
Booth features
- Galvanized steel with a powder-coated white finish
- Two T-8 4-tube Class 1 Division 2 inside-access light fixtures
- 32" exhaust fan with a 5hp VFD-controlled TEFC motor
- 9'h x 9'4"w main door opening plus a 3' x 7' man door
- Double-skin insulated doors with 1200-degree rock wool insulation
- M-1 spray-and-bake 1.0 MBTU direct-fired heater with prefilters
- Centrifugal blower powered by a 7.5hp motor
- Booth-mount duct kit, automatic roof ventilator and fresh-air cap
- Air switch interlock system
