SprayTech & JunAir

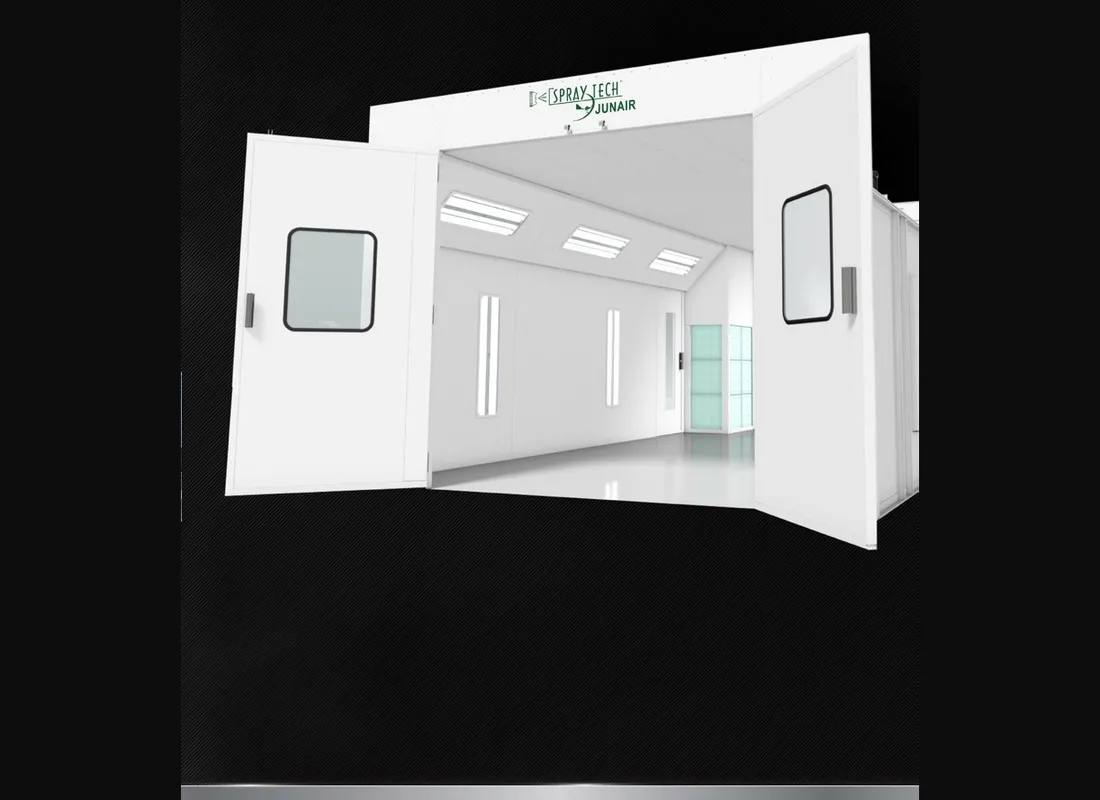

Thermaire downdraft
& semi-downdraft.
Top-producing packaged spray booths with long-lasting, state-of-the-art capabilities at an economical price point.
- Authorized SprayTech & JunAir
- Engineers & Tradesmen
- Warranty & Workmanship Guarantee
- Serving all of Alberta
Overview
Efficient overspray control, economical price
The Thermaire booth intakes fresh air from your shop through filters contained in the plenum. The filtered air is drawn down and away from the vehicle through exhaust filters at floor level along both sides of the booth, delivering efficient overspray control and a contaminant-free workplace environment.
- Side-downdraft available in 24' and 27' cabins
- Semi-downdraft available in 24', 27' and 30' cabins
- Dual-skin insulated panel construction
What you get
Booth features
- 9' x 9' tri-fold main door opening
- 18-gauge galvanized steel, powder-coated white finish
- Duct kit with 12' x 30" round duct, rain cap and booth transition
- Two 24" fans with 3hp TEFC motors, 17,000 CFM
- T-8 4-tube lighting plus Class I Div II fixtures
- Double-skin insulated doors with 1200-degree rock wool insulation
- M-1 two-speed 1.0 MBTU direct-fired heater
- Seven 30" x 96" 6-micron intake blankets
- 32" exhaust fan with 5hp motor (semi-downdraft)
- Indoor stand placing the air make-up unit over the booth
Keep exploring
Other booths we install
JunAir Series 3 & 5
The industry-standard high-production automotive downdraft booths, delivering the highest quality finish at the lowest cost per unit. Programmable controls, QADs air movement and the fastest overspray clearing in the industry.
Cross-Draft Booths
A clean, reliable design that removes dust and contaminants at the front door so they never reach the vehicle. Reverse flow with a booth-mounted heater and inlet damper options.
Truck & Oversized Booths
High-quality SprayTech and JunAir enclosures for trucks, oversized vehicles and large equipment, engineered to function optimally indoors or outdoors.
Aircraft Spray Booths
Cross-draft and downdraft finishing environments and hangar inserts, tailored from two-seat high wings up to a Boeing 747.
Open-Face Booths
A complete line of open-face industrial booths in a variety of sizes and configurations, designed for exhausting dust, harmful vapours and paint fumes from your shop.
Prep Stations & Mix Rooms
JunAir prep stations and designated mix rooms that add clean, organized, productive workspace, with flexible design options for your material storage needs.
QUADS Air Distribution
The JunAir Quality Air Distribution System moves air around the entire vehicle, cutting flash-off times, easing bottlenecks and reducing booth cycle times by up to 35%.
Get a quote
Ready to scope a thermaire downdraft & semi-downdraft install?
Tell us what you paint and how often. We'll recommend the right configuration and handle the entire installation, from permits to start-up.
Call (403) 702-5026
